MINING EQUIPMENT
MODELS

OTR TYRE MANIPULATOR MODEL’S

04TH2T

TYRE Nos : FROM 11.00R20 to 18.R25.
CLAMPING RANGE : 800mm to 1800mm.
CAPACITY : 2000kg.
Loader Operating Weight : 10,000Kg +

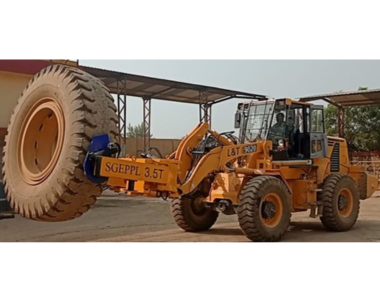

04TH 3.5T

TYRE Nos : FROM 18.00R25 to 27.00R49
CLAMPING RANGE : 900mm to 3000mm
CAPACITY : 3500kg
Loader Operating Weight : 11000 to 19000 Kg +

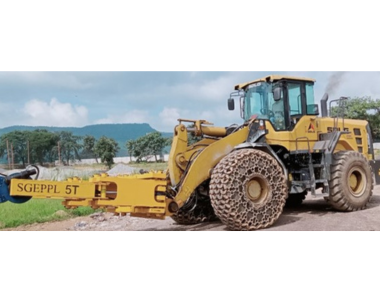

04TH5T

TYRE Nos :FROM 18.00R25 to 33.00R51
CLAMPING RANGE : 900mm to 3300mm
CAPACITY : 5000kg
Loader Operating Weight : 16000 to 19000 Kg +

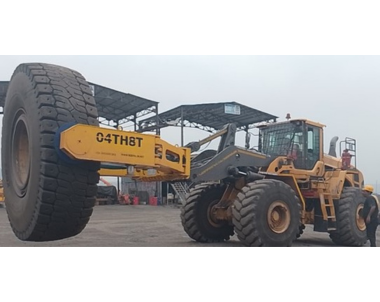

04TH8T

TYRE Nos :FROM 18.00R25 to 40.00R57
CLAMPING RANGE : 800mm to 1800mm
CAPACITY : 8000kg
Loader Operating Weight : 30,000 Kg+

04TH12T

TYRE Nos :FROM 18.00R25 to 60/80R57
CLAMPING RANGE : 1200mm to 4000mm
CAPACITY : 10000kg
Loader Operating Weight : 50,000 Kg+

04TH16T

TYRE Nos :R62
CLAMPING RANGE : 1200mm to 4300mm
CAPACITY : 16000kg
Loader Operating Weight : 60,000 Kg+
